• Fiat Ducato series 9
• DAB Radio with steering mounted controls
• Remote central locking to cab
• Remote central locking to cab and habitation door via key fob (can operate the habitational door independently)
• Immobiliser with unique code
• Driver and passenger airbags
• On-board trip computer
• Cruise Control
• ABS brakes with emergency braking assistance
• Power steering with adjustable steering wheel position
• Door panel stoarge. Inc, bottle holder & 4 storage areas
• 12V DIN socket - for 12V power supply from the cab
• Headlamp height adjustment
• Electrically heated adjustable wing mirrors with direction indicators
• USB
• Daylight running headlights
• Fully adjustable co-ordinated cab seats with arm rest
• Seat belt reminder
• Manual Air con
• Electrically operated tinted cab windows
• Auto lights & wipers
•

• CompleteHeat Whale 4.7 kW Dual-fuel space-saving heating - fast, powerful and efficient, runs on gas and/or electric with quiet night-time setting - and ducted heating throughout including bathrooms
• Whale Heat Control panel with…
  • Modern display with capacitive touch operation
  • Precise temperature control for user comfort
  • Standby indication – Gas & Electric (Blue Standby – Orange on)
  • Water Temperature Selection (Frost, Eco & High)
  • Water temperature heat up status
  • Auto dim function
  • AC current limit selection
  • Proximity sensor (lights up before customer touches panel)
  • Single button reset at panel

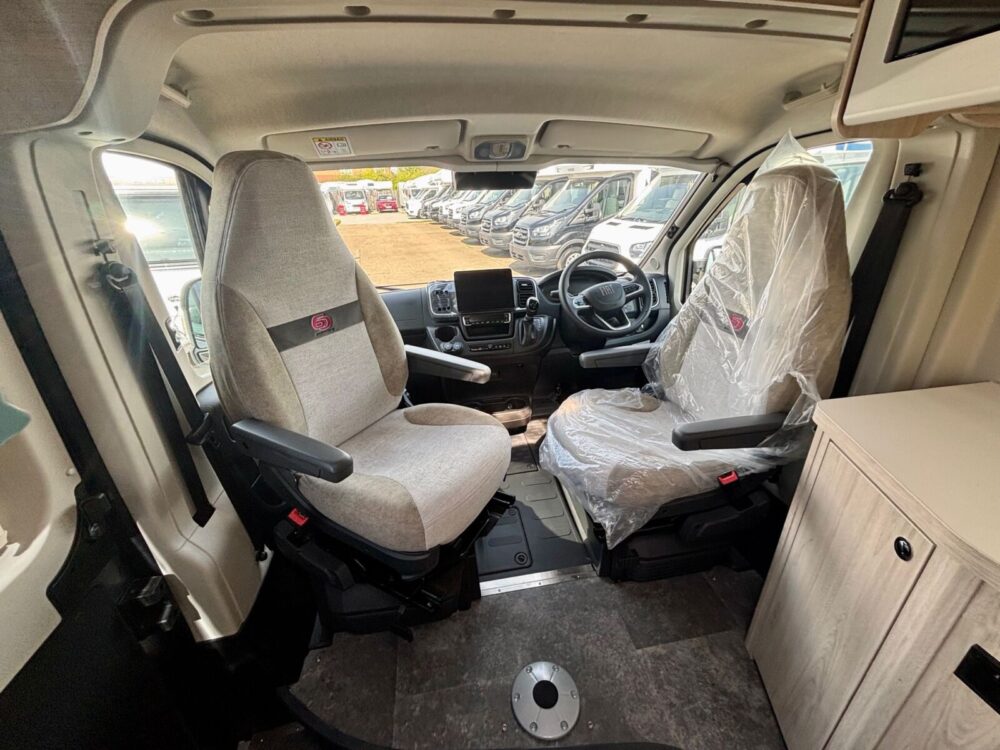

• Fully adjustable and co-ordinated swivel Captains’ seats with armrests
• Half-height wardrobe with soft-close hinges
• Easy bed make up, with pull-together sliding system
• Double-glazed opening windows with night ventilation position (excluding cab windows)
• Pleated blinds and flyscreens (excluding cab windows)
• CV60 retractable Daybed mattress is lightweight, yet super-supportive with soft-touch Argentum+ anti-bacterial and anti-allergy technology with Silver

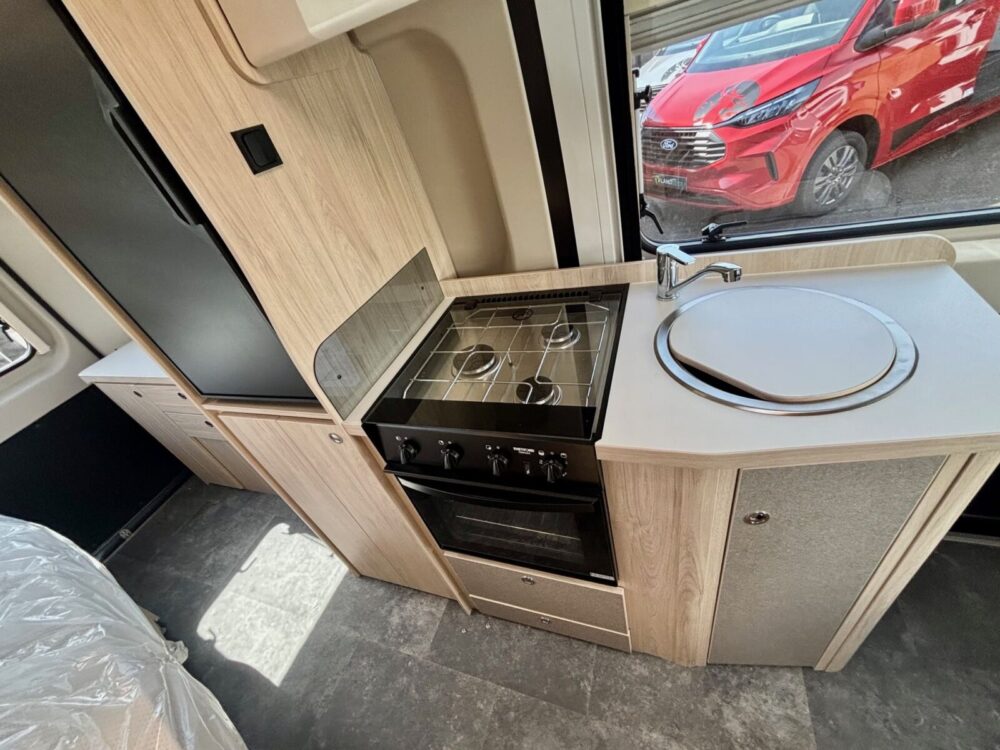

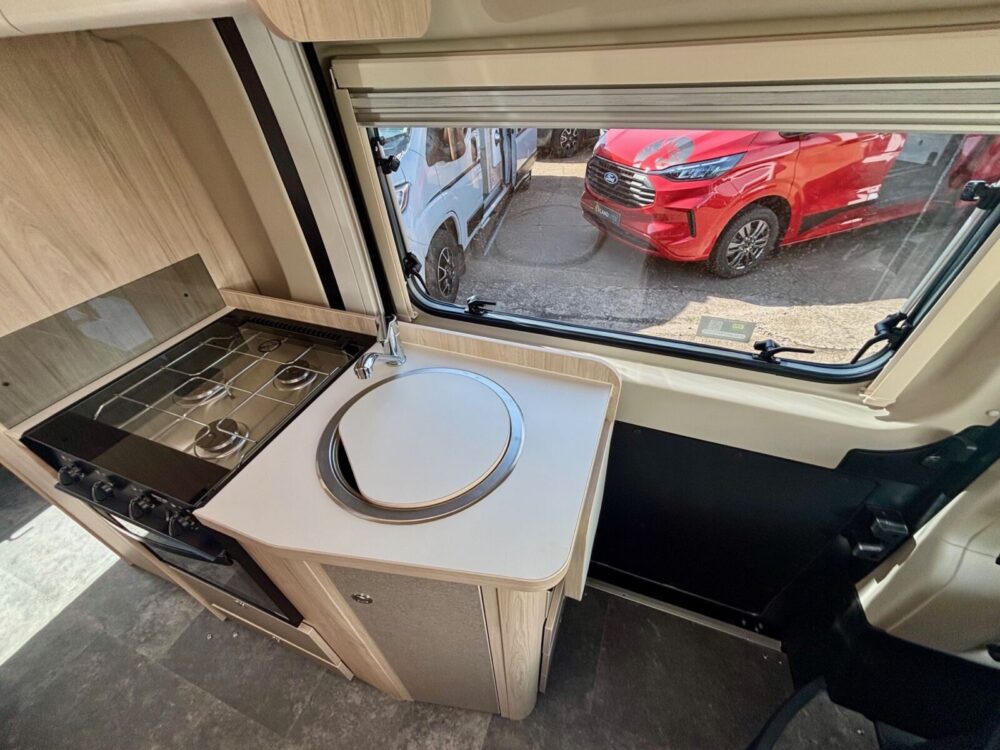

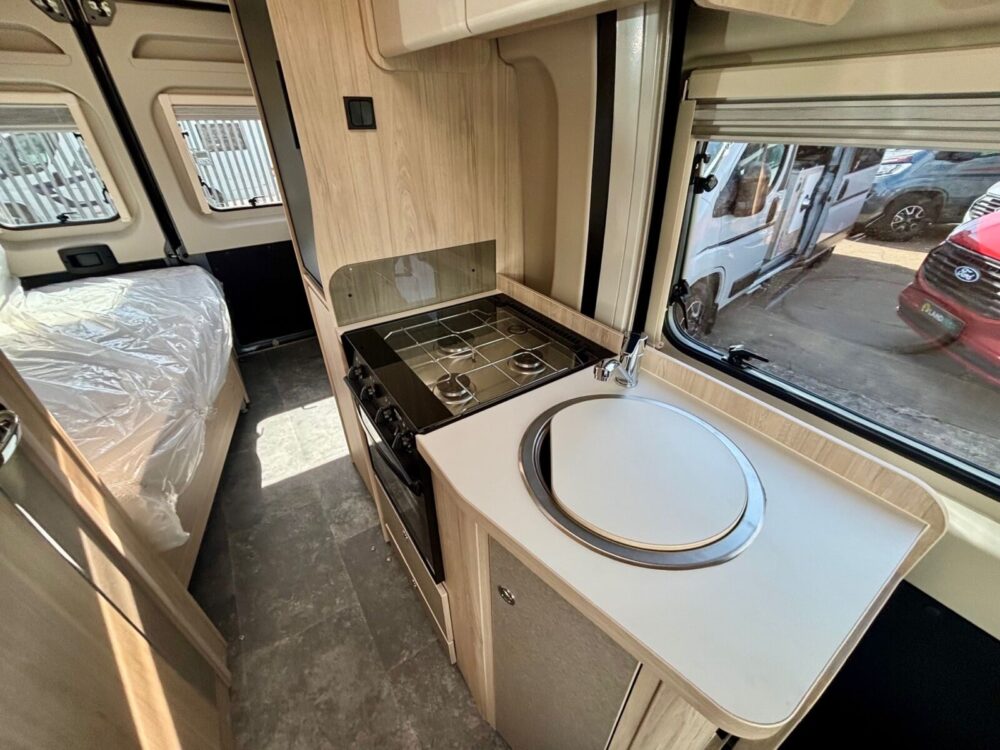

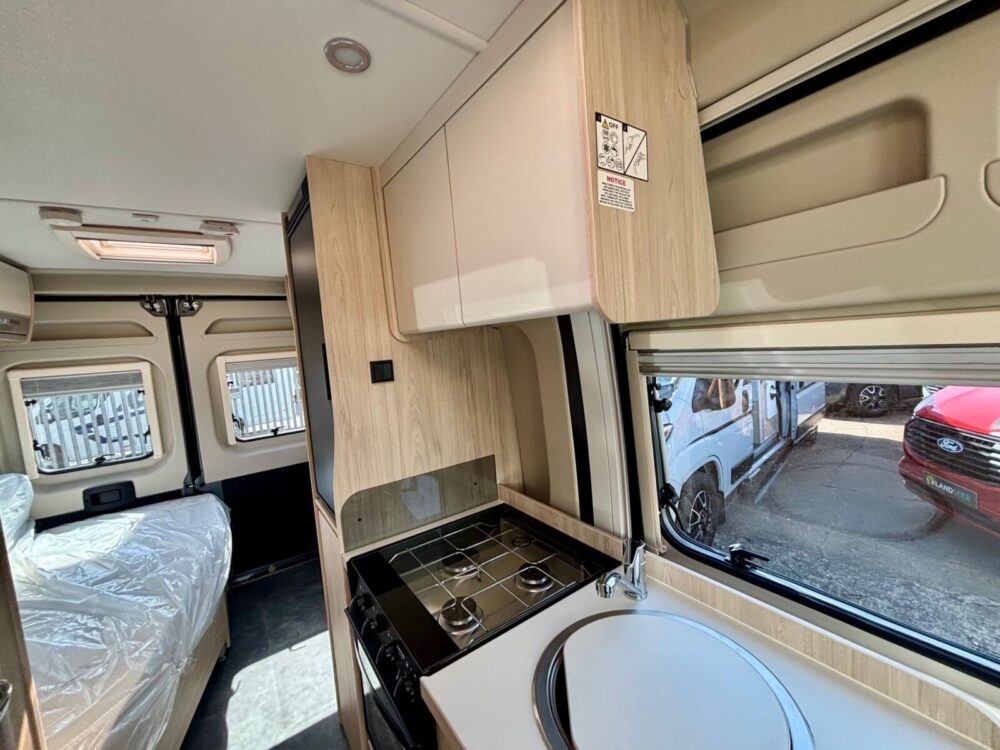

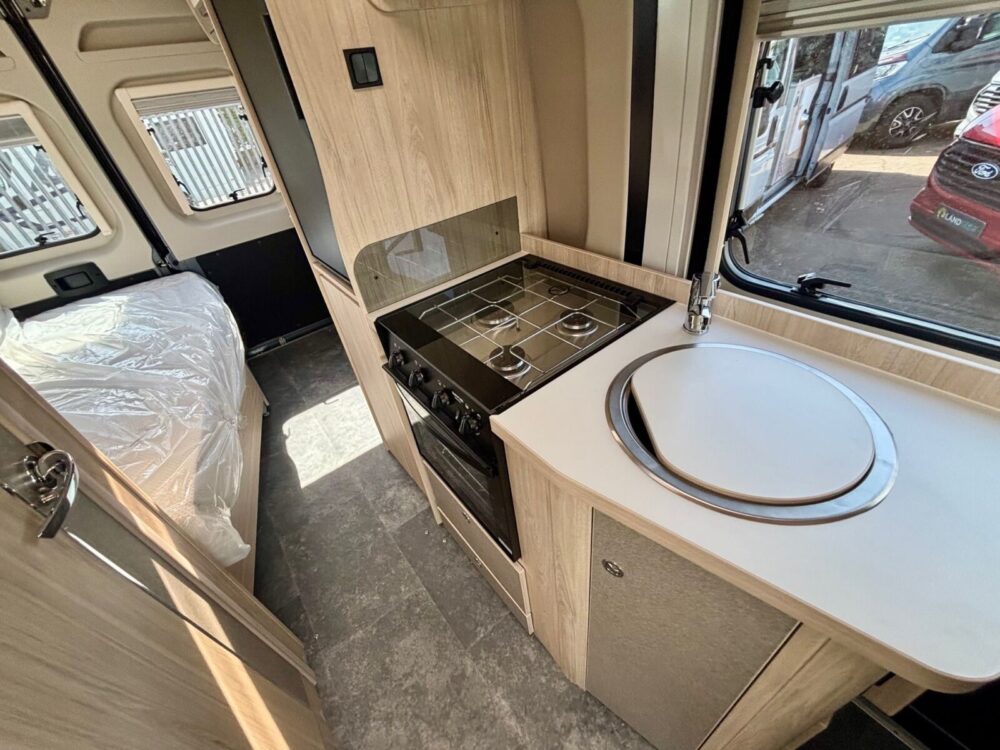

• Thetford Triplex oven, grill and 3-burner gas hob (with auto-shut-off safety function) and glass lid creating additional work surface

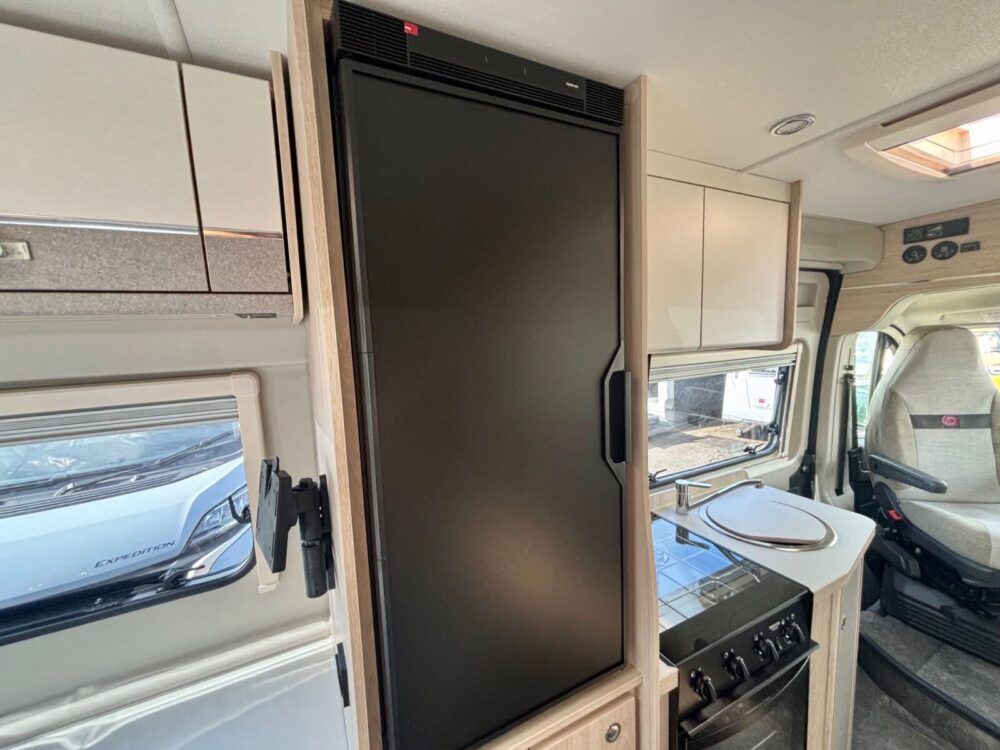

• 87L Fridge-freezer
• Stainless Steel sink with integrated chopping board cover
• Polished chrome fittings and taps
• Well lit kitchen work area, with LED downlights
• Worktop extensions
•

• TV point with dedicated location for comfortable viewing (230V, 12V and aerial connection)
• Teleco Wing Omni-Directional Aerial
• Stowaway dining table with dedicated storage

• Electric entrance step
• 25L LPG Underslung tank as standard, with LED level indicator
• Improved-comfort height-adjustable Driver and Passenger seatbelts
• Fully protected mains electric system with up to four 240V sockets
• Contemporary switches, sockets and surrounds
• Option for rear-mounted 2-cycle rack
• Conveniently placed 12V control panel, incorporating water pump, lighting circuits, fresh water tank level and waste warning light when full
• Sliding entrance door with window, and flyscreen and rain deflector

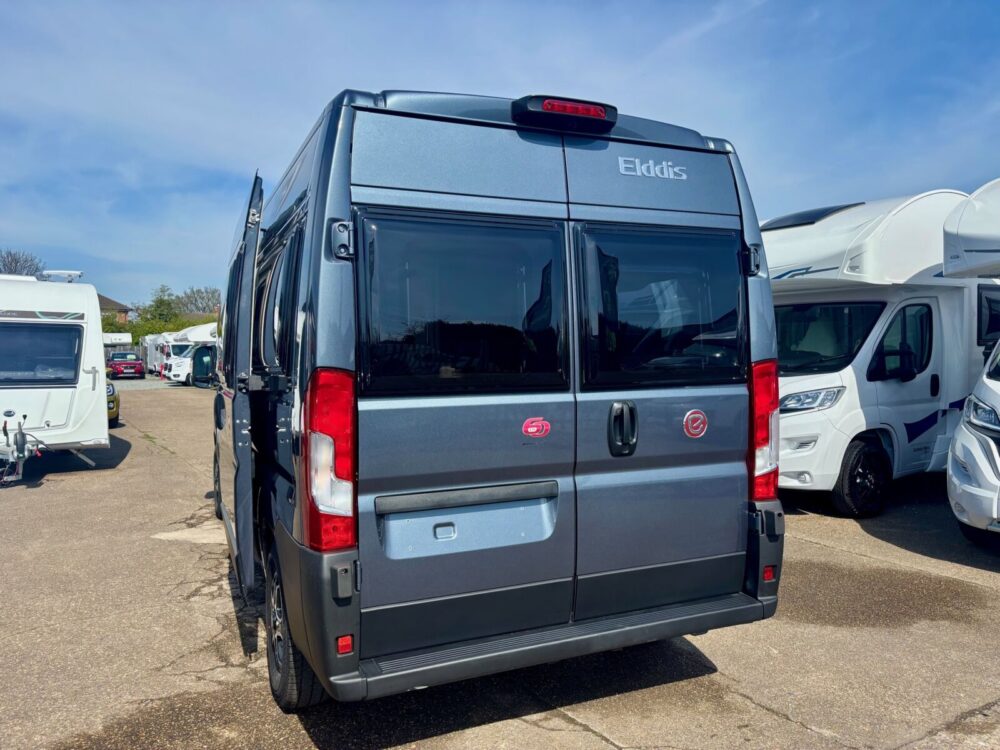

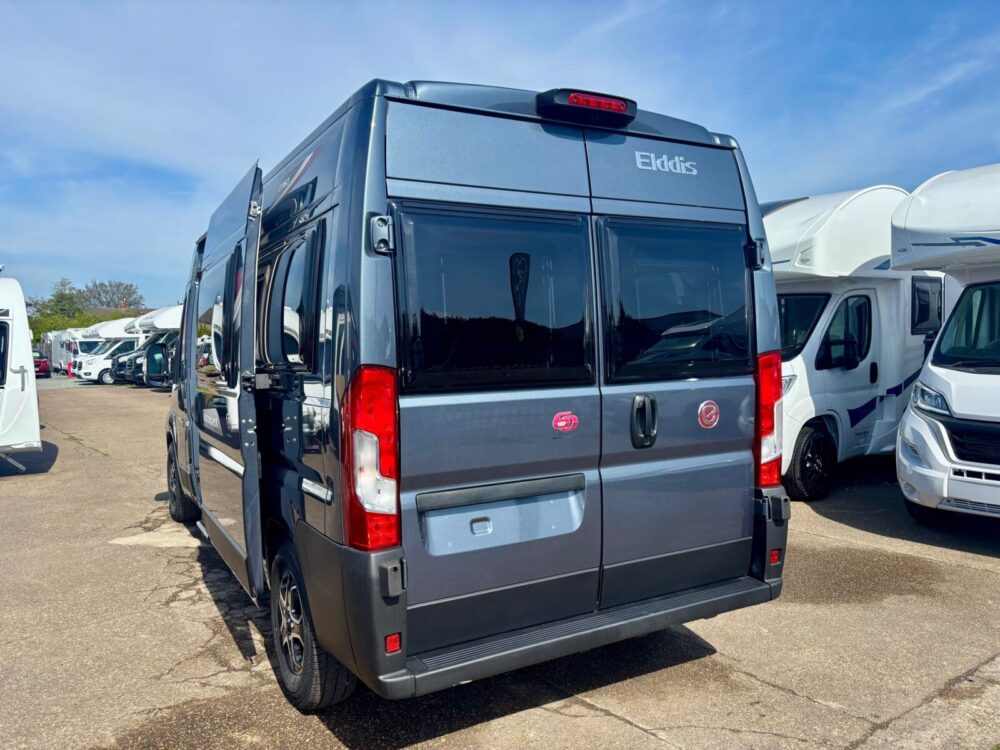

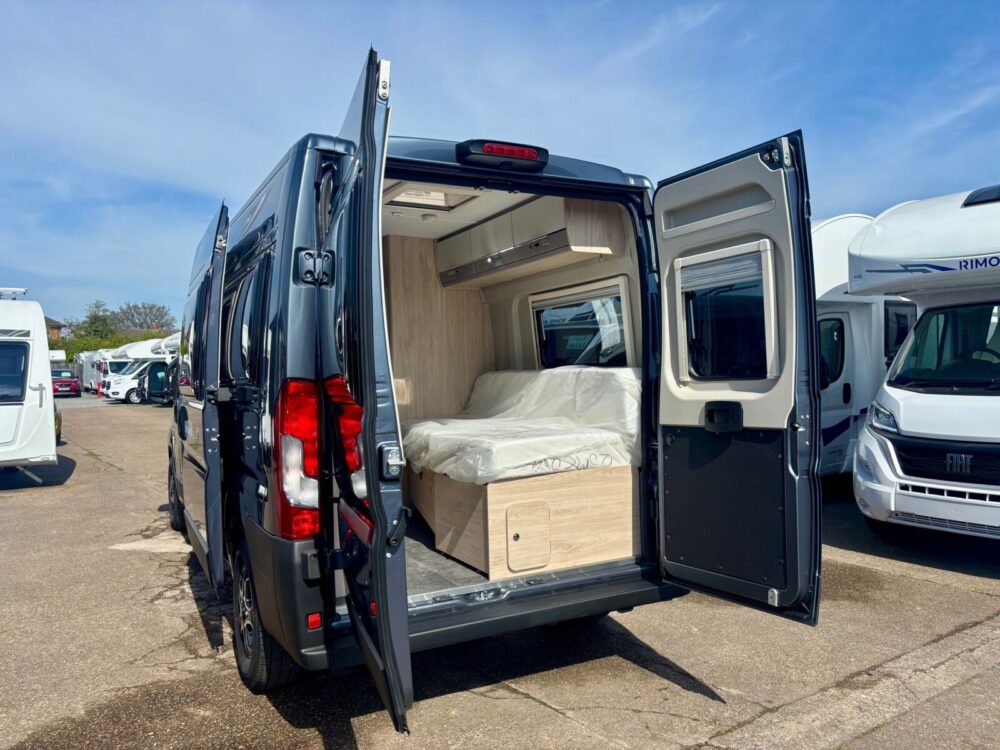

• Rear double-barn door, with central locking - opening up the sleeping area to the outdoors
• 20 Amp switchmode charger / transformer
• 25m mains hook-up cable
• Exterior mains electric inlet
• Seat bases with space underneath for ample storage of larger, bulky items (battery stored here)
• Smoke alarm
• Carbon Monoxide (CO) alarm
• Isolation taps for gas appliances
• ‘Easy-slide’ - chariot-style socket
• ISOFIX seat frame for CV40 & CV80

• Stylish 60th Anniversary Diamond Edition graphics
• Kromex badges (Elddis logo, front and rear)
• Kitchen locker doors with concealed catches
• ‘Tibero’ craftsman-built cabinetry with ‘Linum Haithabu’ feature strip, handcrafted dove-tailed drawers, overhead lockers with positive locking, contrasting ‘Platino’ flush-fit kitchen units
• Contemporary interior design and luxurious ‘Mara’ upholstery with Hi-Performance, lightweight construction, with 2 x co-ordinating scattercushions as standard
• Durable ‘Porcelain White’ worktops throughout, including bathroom unit tops
• Easy clean heavy-duty vinyl flooring in ‘Harlem’
• Rain deflector with integrated LED Awning light
• LED interior spotlights with concealed lights above overhead lockers (saving up to 80% battery consumption)
• Fiat wheel trims
• Removable luxurious loose fit carpet in ‘Hebblestone Twist’ with ‘Heno Grey binding’ and press-studs
• NEW sheet material scheme including vinyl flooring (Tibero with Platino & Linum Haithabu)

• 90L underslung fresh water tank with manual water fill system
• 45L Underslung waste water tank
• Whale Expanse dual-fuel underslung 8L water heater

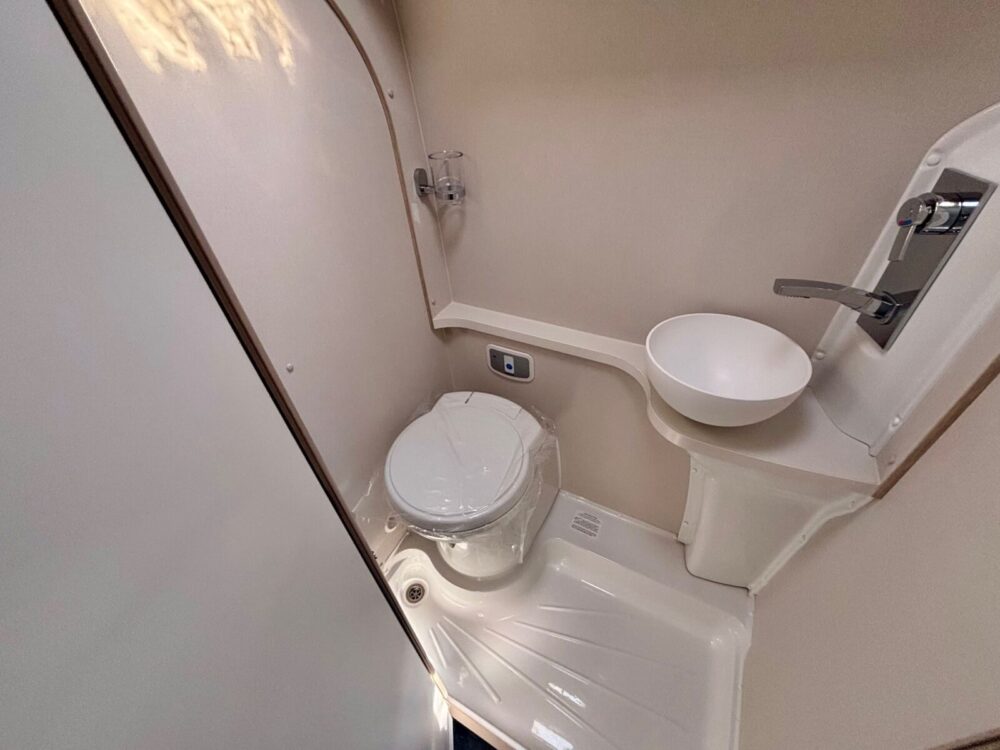

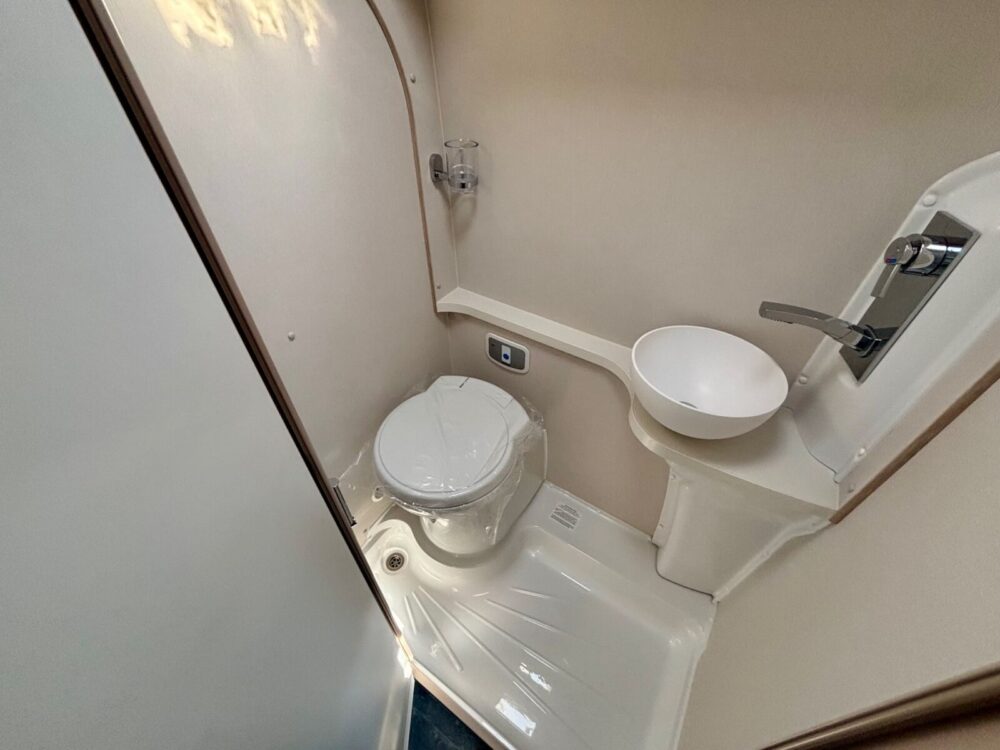

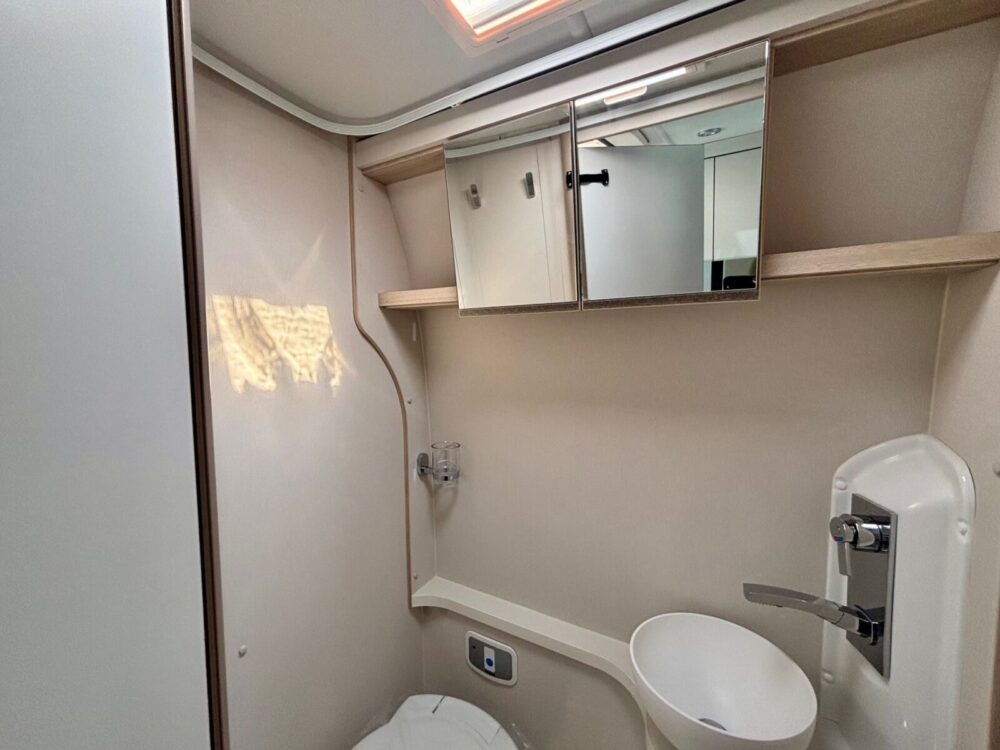

• ‘Boutique’ washbowl basin with click-clack plug
• 'Wall-mounted, retractable combined tap and shower head
• Thetford toilet with auto-fill flush from on-board water tank
• Domestic style bathroom door with high quality privacy lock

Year: 2024

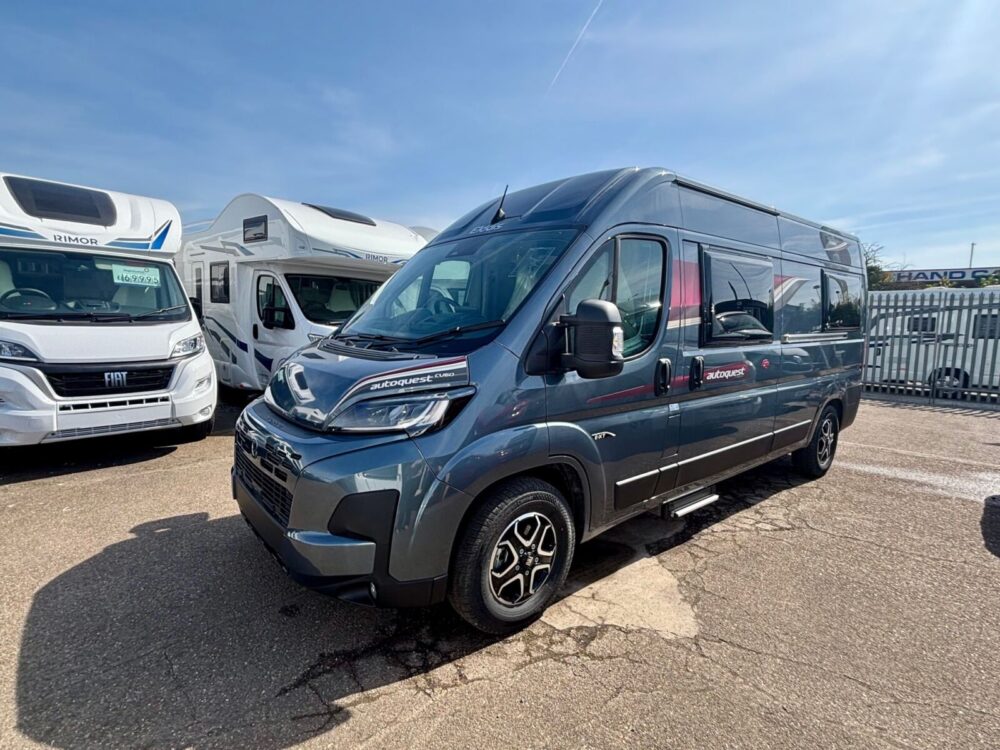

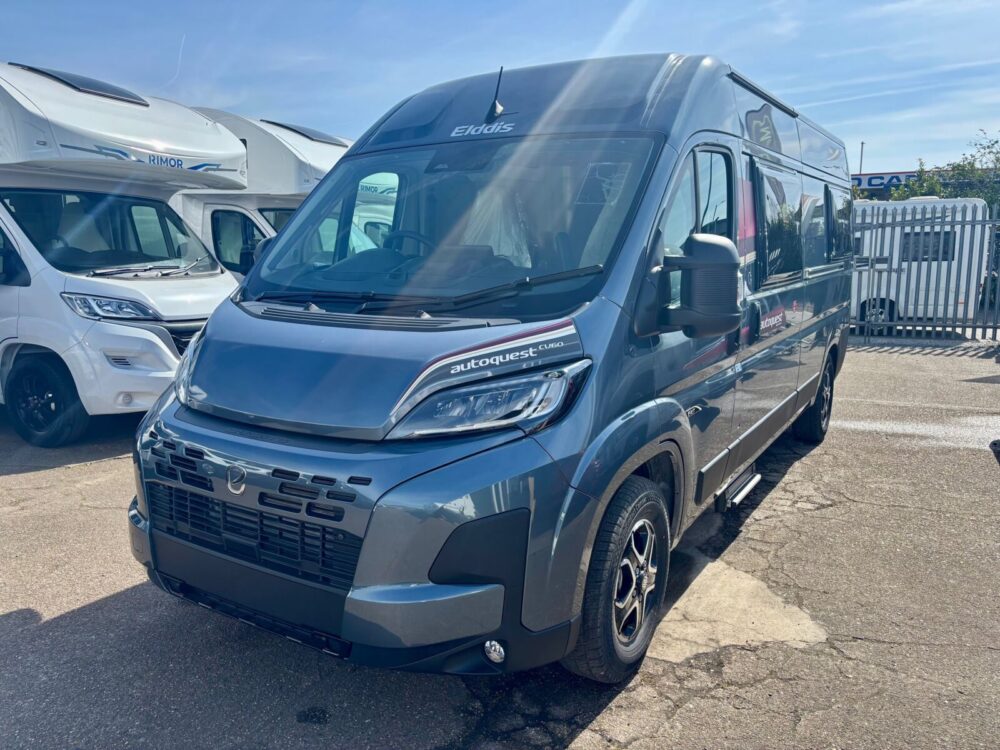

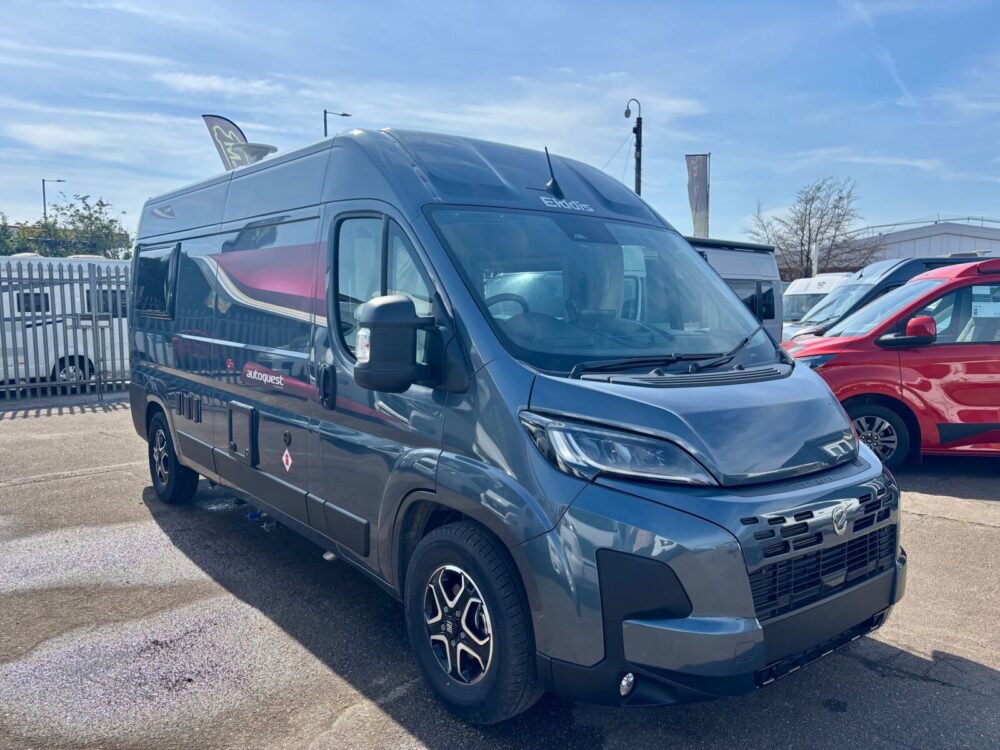

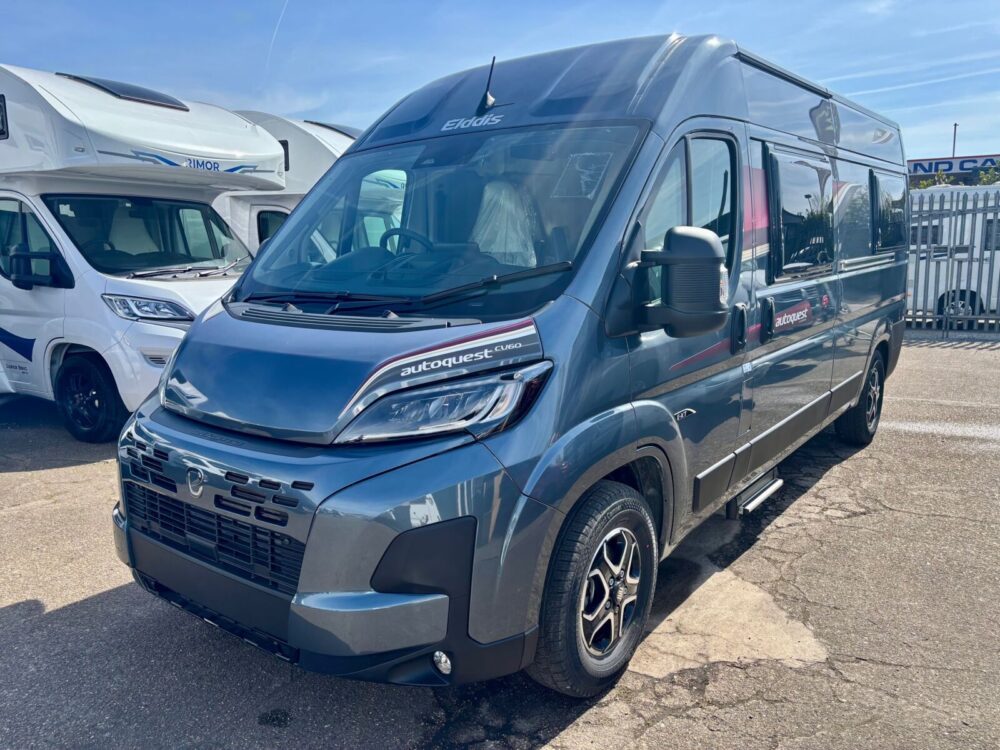

Model: Autoquest CV40

Base Vehicle: Fiat 250 Ducato Euro 6D Van

Number of Berths : 3

Number of Seat Belts: 4

Exterior Length: 5998mm/19’8"

Overall Width Including Wing Mirrors: 2500mm/8’2"

Overall Body Width: 2050mm/6’9"

Overall Height Including Aerial: 2670mm/8’9"

Maximum Headroom: 1899mm/6’3"

Interior Width: 1944mm/6’5"

Tyre Size: 215/70 R15 CP 109*

Tyre Pressure Kpa/Psi (As recommended by the Base Vehicle Manufacturer): Front 543/79 Rear 543/79

Maximum Front Axle Weight: 1850kgs/36.42cwt

Maximum Rear Axle Weight: 2000kgs/39.37cwt

Maximum Towing Limit: 2000kgs/39.37cwt

Mass in Running Order (MIRO): 2905kgs/57.18cwt

Maximum User Payload: 551kgs/10.85cwt

Mass available for User Payload: 236kgs / 4.65cwts

M.T.P.L.M: 3500kgs/68.89cwt

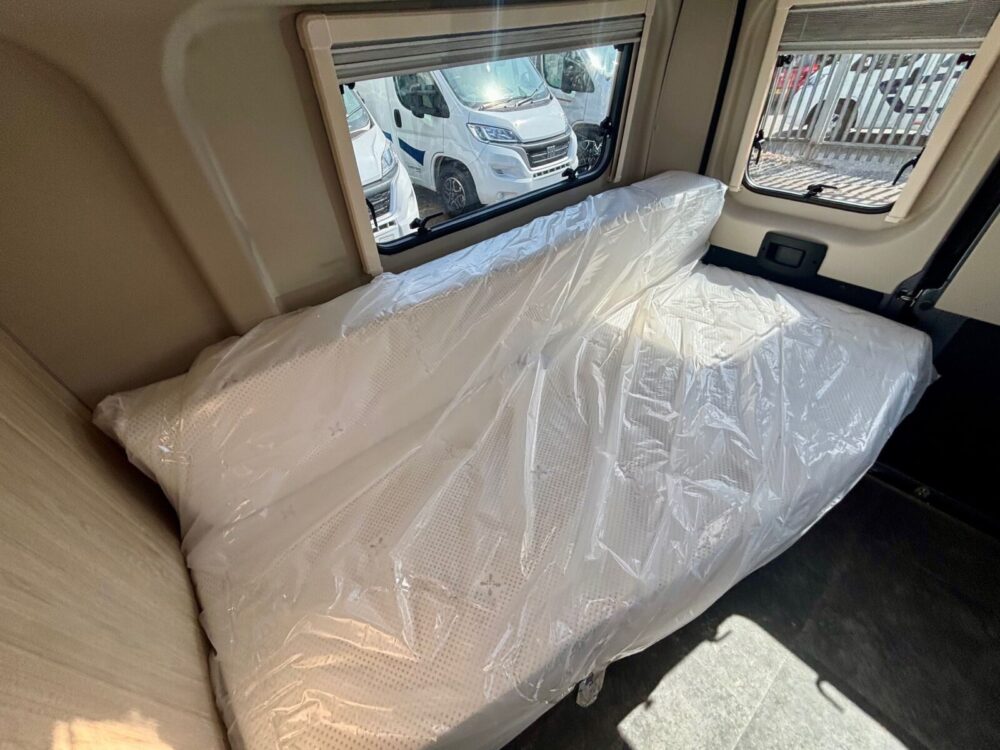

Front Mattress Size: 1 x Single 1645mm x 600mm / 5’4" x 2’0"

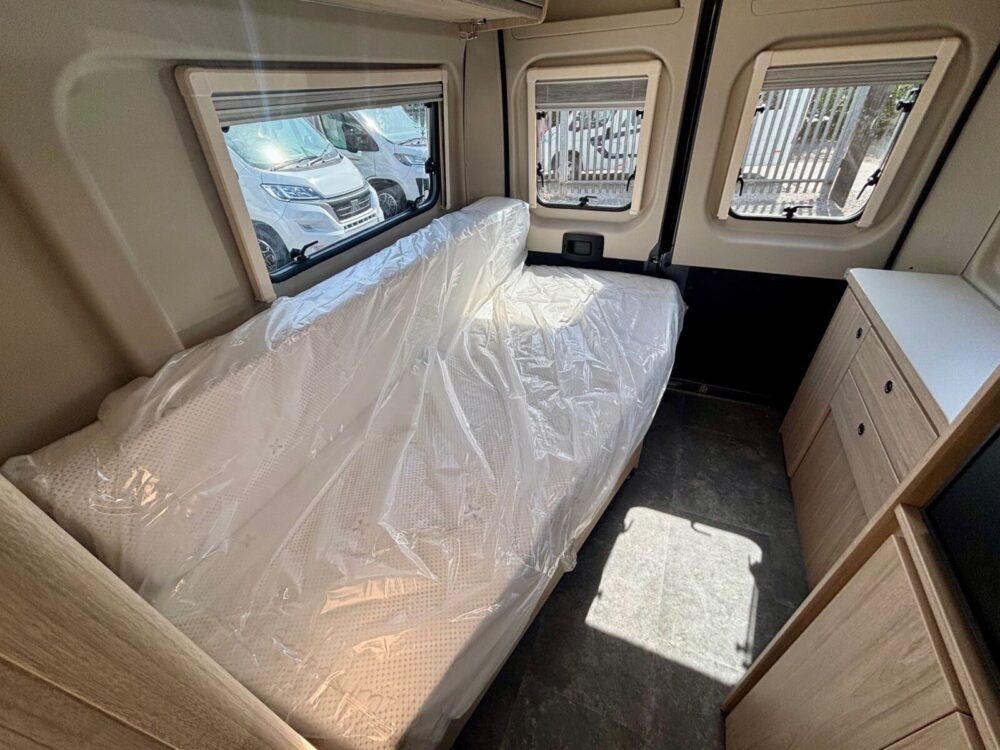

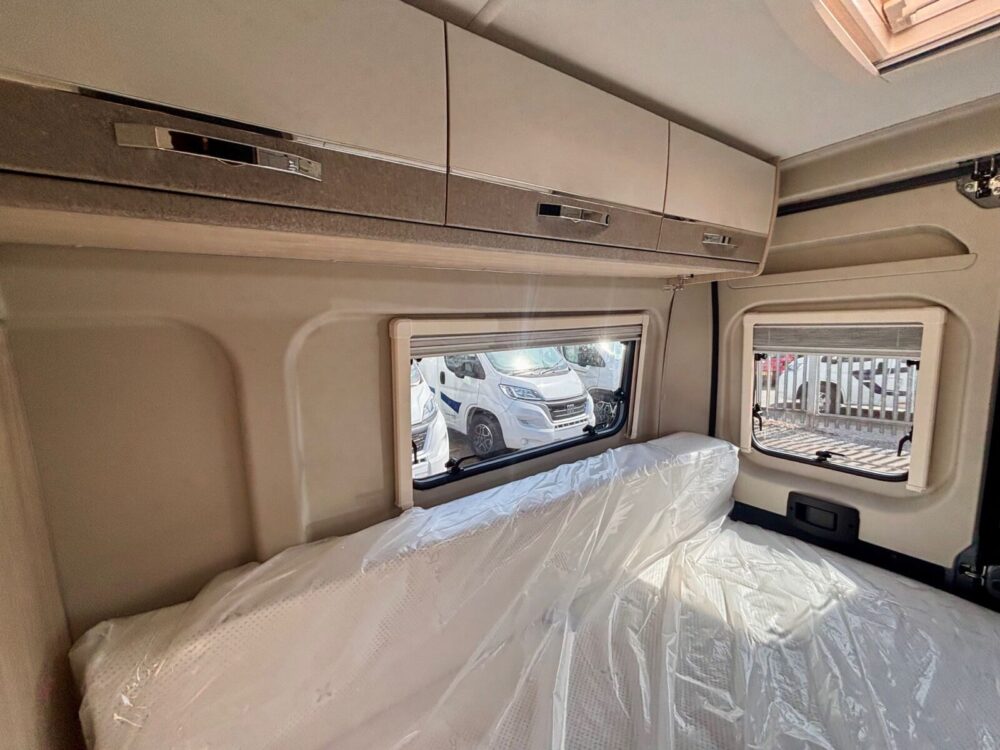

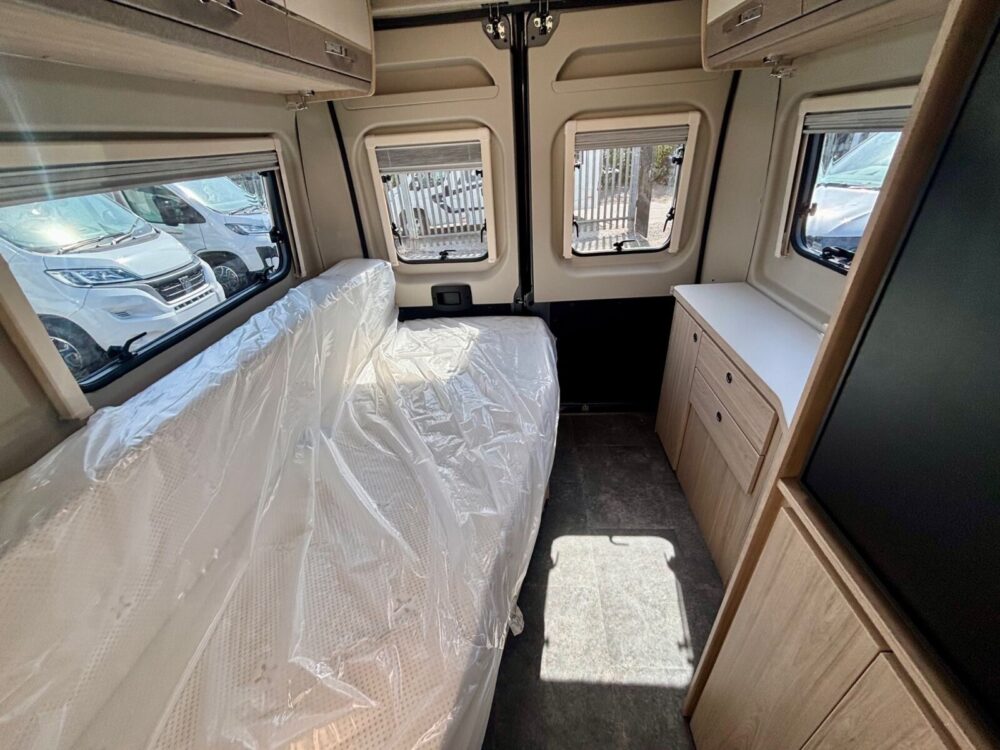

Rear Mattress Size: 1 x Double 1300mm x 1850mm /4’3" x 6’1"

Notes

Note 1: The Mass In Running Order (MIRO ) - Weight of the Campervan equipped to the manufacturer’s standard specification including essential habitational equipment.
Note 2: Maximum User Payload includes the Personal Effects payload, conventional load and the Optional Equipment Payload.
Note 3: Maximum Technically Permissible Laden Mass (MTPLM) - The technical maximum permissible laden weight of the Campervan.
Note 4: Please take care to ensure that you have allowed for the masses of all items you intend to carry in the Campervan.
Note 5: All data is calculated using metric weights and measurements. The imperial figures quoted are conversions thereof. All dimensions have a tolerance of +/- 25mm
Note 6: Your Campervan weights have been calculated with all water tanks empty and you are recommend to travel with all water tanks empty
Note 7: WARNING : Under no circumstances should the plated MTPLM of the Campervan be exceeded
Note 8: Heights are measured on an unladen vehicle with the aerial in the lowest position
Note 9: *Standard steel wheels on Fiat models are 15". Alloy wheels & wheels on automatic option
models are 16" tyre 225/75 R16 CP 116
Note 10: A MIRO tolerance of +1.5% is permitted as per the NCC COP 304/402 regulation to account for build variance.
Note 11: To ensure the minimum user payload of the vehicle is delivered and the MTPLM is not exceeded the removal of additionally specified options may be required.
